Project Retaining Wall

Waterproof your Retaining Wall in 7 simple Stages

Stage 1:

Power Wash

Clean entire surface of retaining wall, including footing and scrap any dry concrete spillages that may be left.

Stage 2:

Detailing - Part 1

Apply 150mm of Geo-Textile to entire wall floor join embedded into Waterproof Sealant

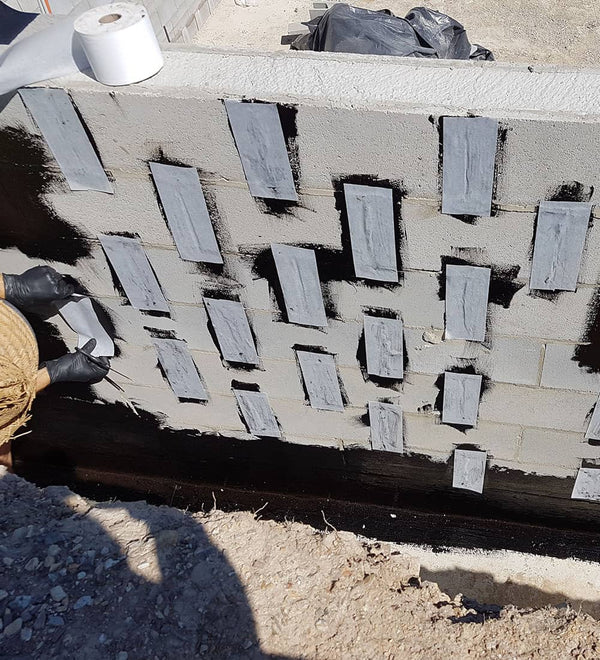

Stage 3:

Detailing - Part 2

Pre cut Geo-Textile to bridge any cracks, gaps, holes and corners and emdedd it into Waterproof Sealant.

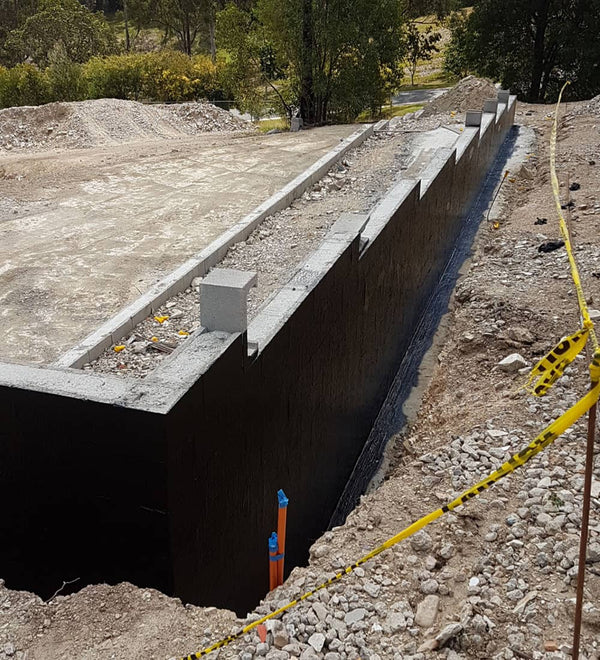

Stage 5:

First Coat Waterproof Sealant

Apply a first coat of Waterproof Sealant to entire retaining wall surface using ample amount of product in an up and down motion.

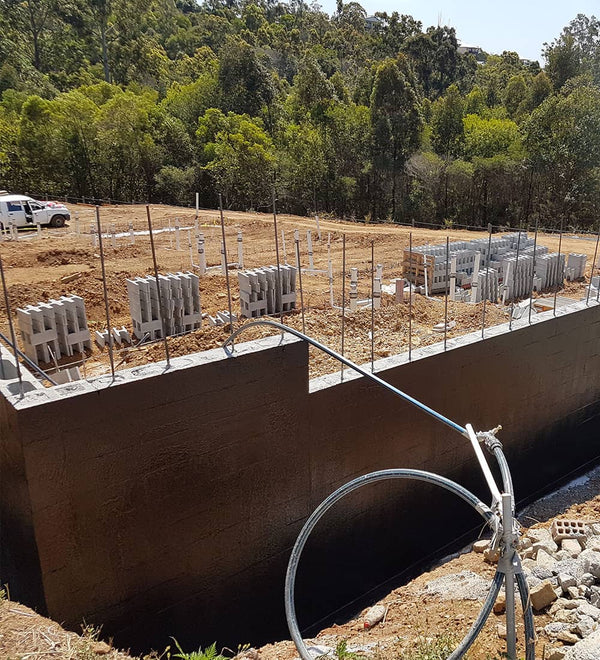

Stage 6:

Second Coat of Waterproof Sealant

Once cured, apply a second coat of Waterproof Sealant to entire retaining wall surface using ample amount of product in a left to right motion.

Stage 7:

Corflute and Back filling

IMPORTANT - Waterproof Sealant must be cured - 48-72 hours prior to applying protection board (corflute) and back filling with dirt. Recommended to apply gravel and ag-pipe before filling with dirt.

How to Waterproof a Retaining Wall

Step-by-Step Instructions

1

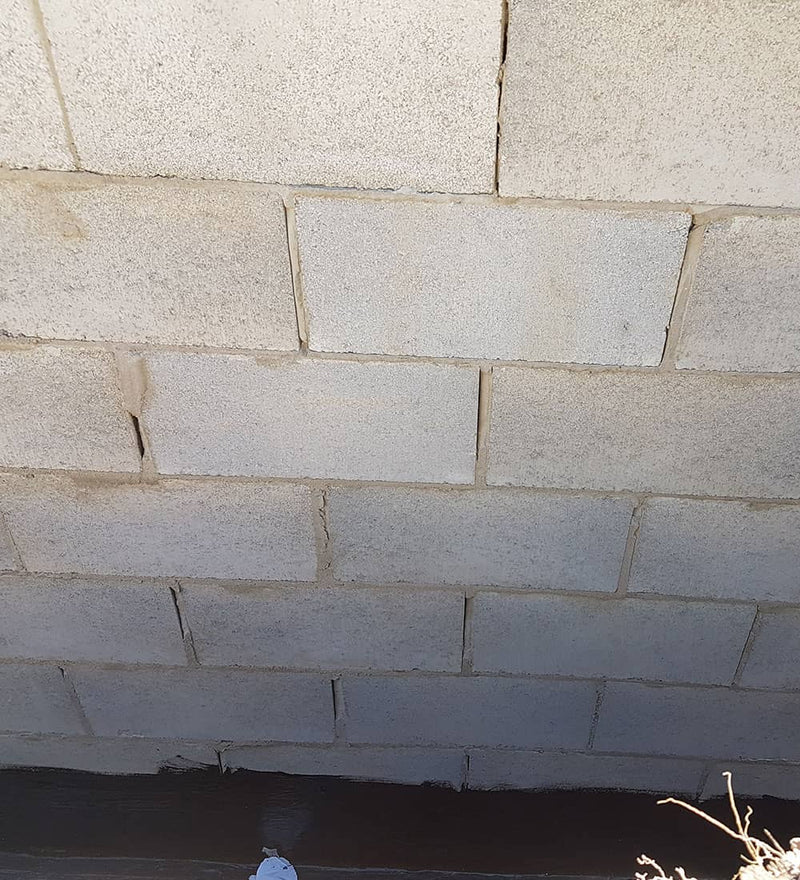

Prepare the Surface

  • Clean the entire surface of the retaining wall, including the footing.
  • Scrape away any dry concrete spillages.
  • Use a leaf blower to remove any dust and ensure the surface is clean and debris-free.
2

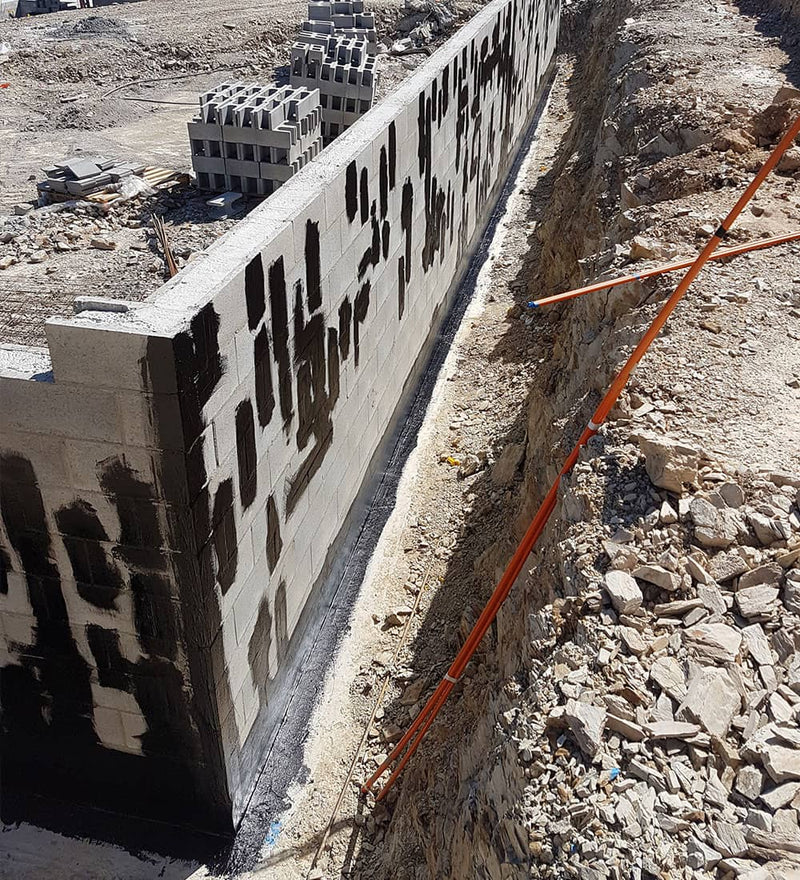

Reinforce Cracks and Vulnerable Areas

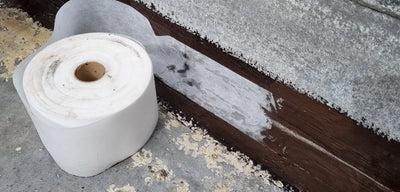

  • Pre-cut Geo-Textile to fit cracks, gaps, holes, and corners.
  • Ensure to cut a 150mm strip of Geo-Textile for the entire wall-floor join.
  • Apply a coat of Waterproof Sealant to these areas using a brush, and embed the Geo-Textile into the wet sealant. Smooth out any air bubbles or wrinkles for a perfect bond.
3

Apply the First Coat of Waterproof Sealant

  • Apply the first coat of Waterproof Sealant to the entire retaining wall surface, using an up-and-down motion to ensure even coverage.
  • Use ample product to achieve a uniform layer, especially over reinforced areas.
4

Apply the Second Coat of Waterproof Sealant

  • Once the first coat has cured, apply a second coat using a left-to-right motion. This ensures thorough coverage and creates a durable waterproof barrier.
  • Aim for a dry-film thickness of 1.5mm (approximately 2 liters per square meter).
5

Optional: Speed Up with Rapid Cure Spray

Use Rapid Cure Spray to set the product instantly and reduce curing time. Ensure the spray is fully dry before applying additional coats.

6

Cure and Protect Before Backfilling

  • Allow the Waterproof Sealant to cure for 48-72 hours before applying protection boards (corflute).
  • Before backfilling, add gravel and ag-pipe to improve drainage and prevent water pooling against the wall.

Additional Tips

  • Avoid Applying in Wet Weather: Ensure no rain or dew is expected during the application and curing process.
  • Protect During Backfilling: Always use protection boards to prevent damage to the sealant when filling with dirt.
  • Ideal Conditions: Apply products in temperatures between 10°C and 32°C for optimal results.
